Kinyea Technologies defines a series of product enhancement functions as kySP (Signal Packet). These rich, powerful SP capabilitie provide you with various types of value-added services.

kyR-KC fully utilizes hybrid computing resources and deeply integrates the advantages of software and hardware to perform hardware-based channelization and extraction on wideband signals. This achieves flexible channel selection, enabling the synchronous and precise capture of multi-channel characteristics and unlocking potential data value.

kyR-KC freeing you from the constraints of complex, low-level data, these kySPs enables you to focus on the core of data application and innovation and fully addressing the challenges of a dynamically changing electromagnetic spectrum.

MARSA module:  KVE4100A Series (requires KRP1517)；
MARSA instrument：KRA-800C/KCA-W800/KVE82000C/KRT-F/KCT-F/KRT92000C Series.
kyR-KC contains：kyR-KC8, kyR-KC16, kyR-KC32, kyR-KC64, and kyR-KC128, representing 8, 16, 32, 64, and 128 sub-channels, respectively.

•

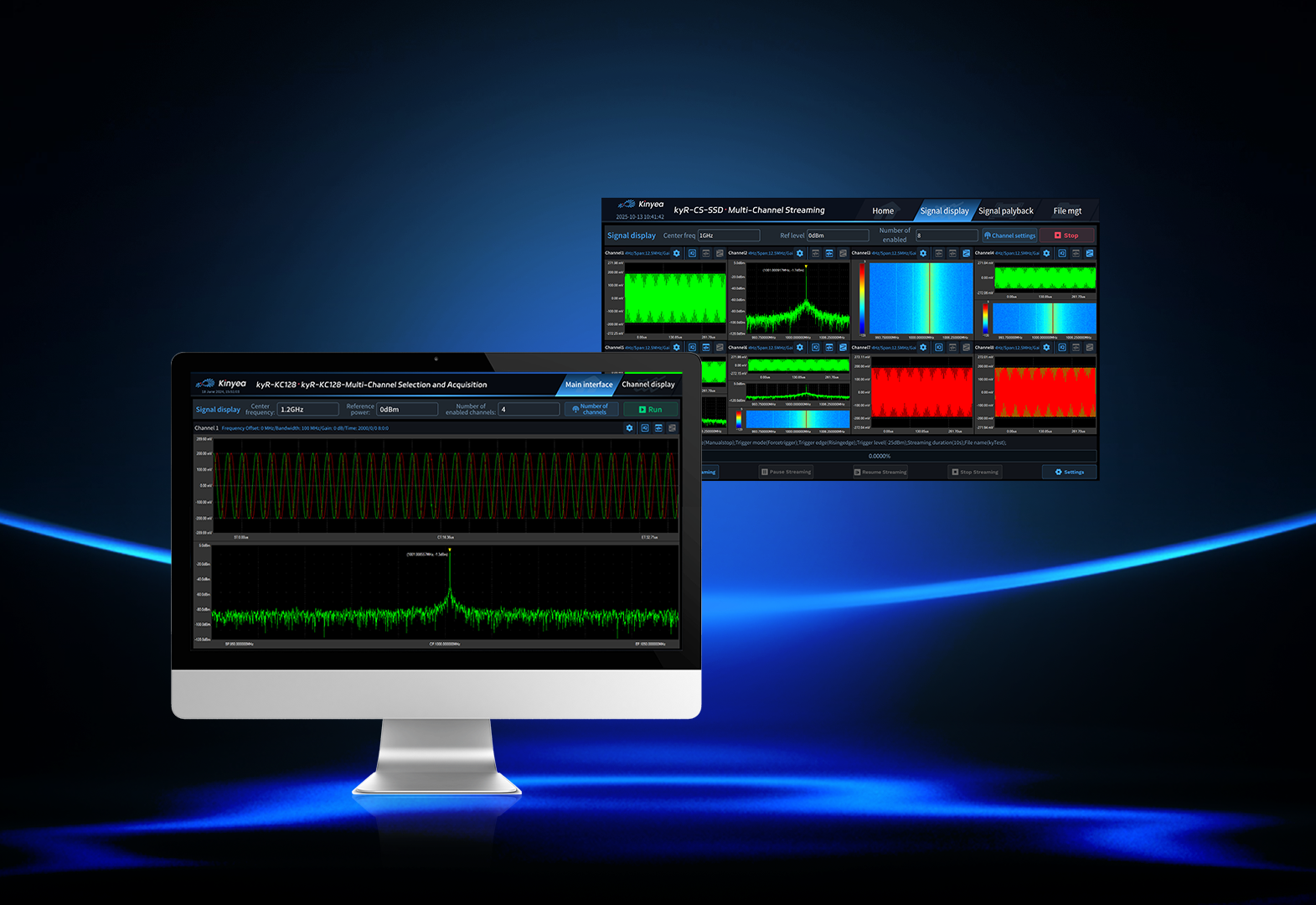

  Supports synchronized multi-channel live streaming, with each channel independently configurable for center frequency, sampling rate, frequency offset, and channel gain, supporting minimum channel bandwidths down to 1.5Hz.
•
  Paired with kyR-xTS and kyR-CS-SSD, supports independent SSD streaming for multi-channel data with concurrent viewing and recording. Configurable live measurement parameters facilitate targeted data streaming based on signal characteristics. Provides multi-channel playback functionality that automatically recognizes stored data channel labels for parallel online playback.
•

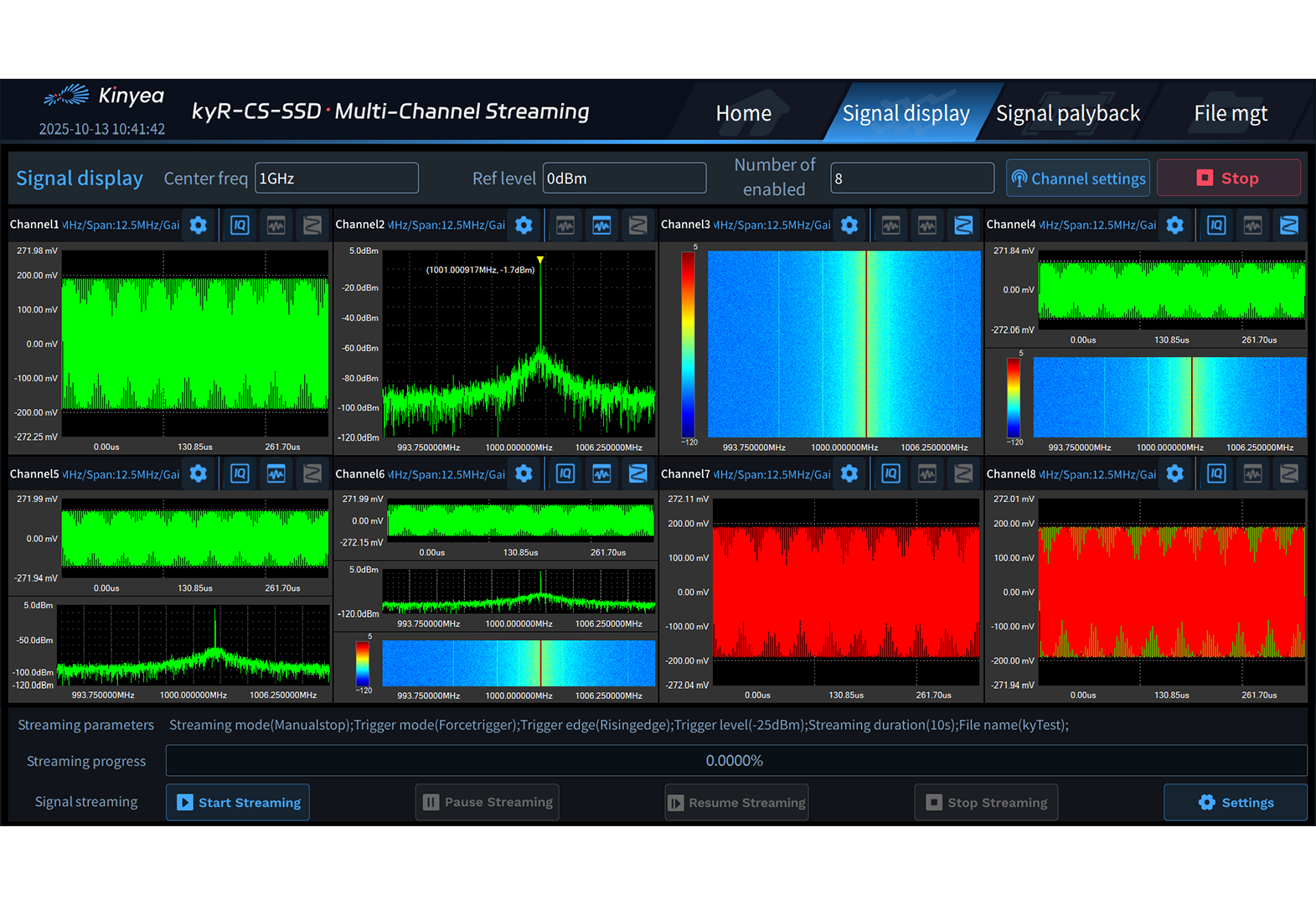

  Both live streaming and playback modes maintain independent signal analysis functionalities per channel including time-domain waveform, spectrum (i.e. persistence, averaging, etc), and waterfall displays.
•
  Provides complete disk file management and on-disk data export functionality, with automatic per-channel data segregation during both recording and export operations.
