User-programmable Xilinx Kintex UltraScale XCKU115 FPGA onboard. It can be programmed using Xilinx Vivado to add real-time signal processing capabilities to any PXI Express system.Via the PXI Express x8 Gen3 backplane interface and peer-to-peer (P2P) streaming capabilities, the KRP1517 coprocessor can stream data with other modules in the PXI system at rates up to 6.4 GB/s without host-CPU intervention.

Features

Onboard FPGA resources are fully open and accessible to the user

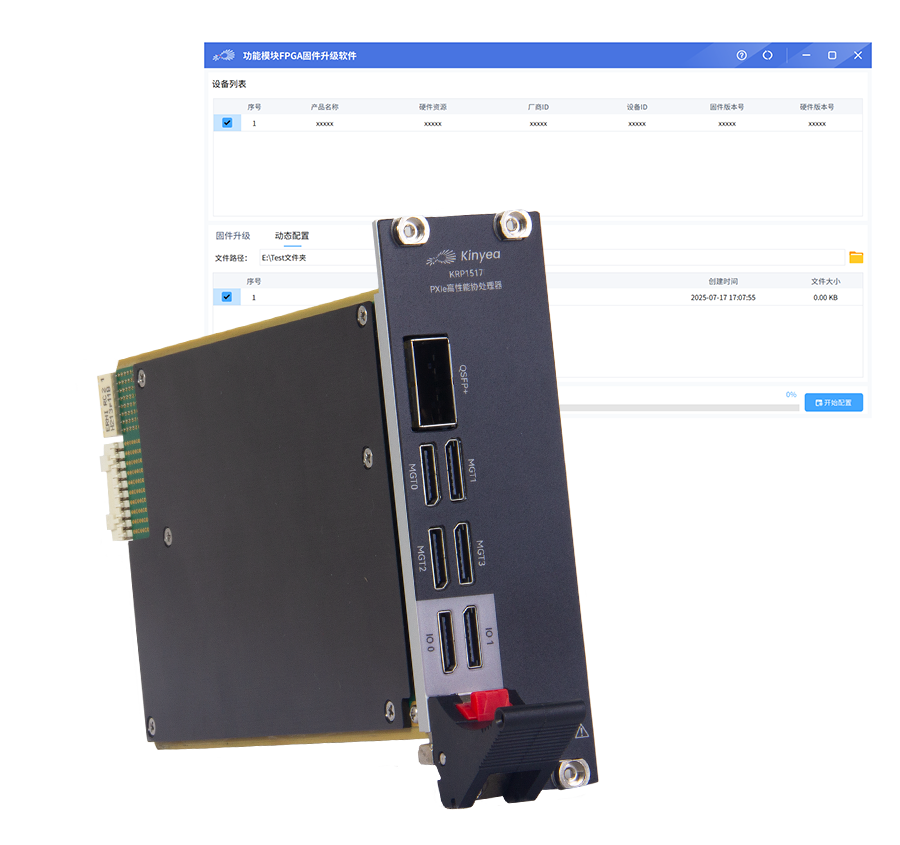

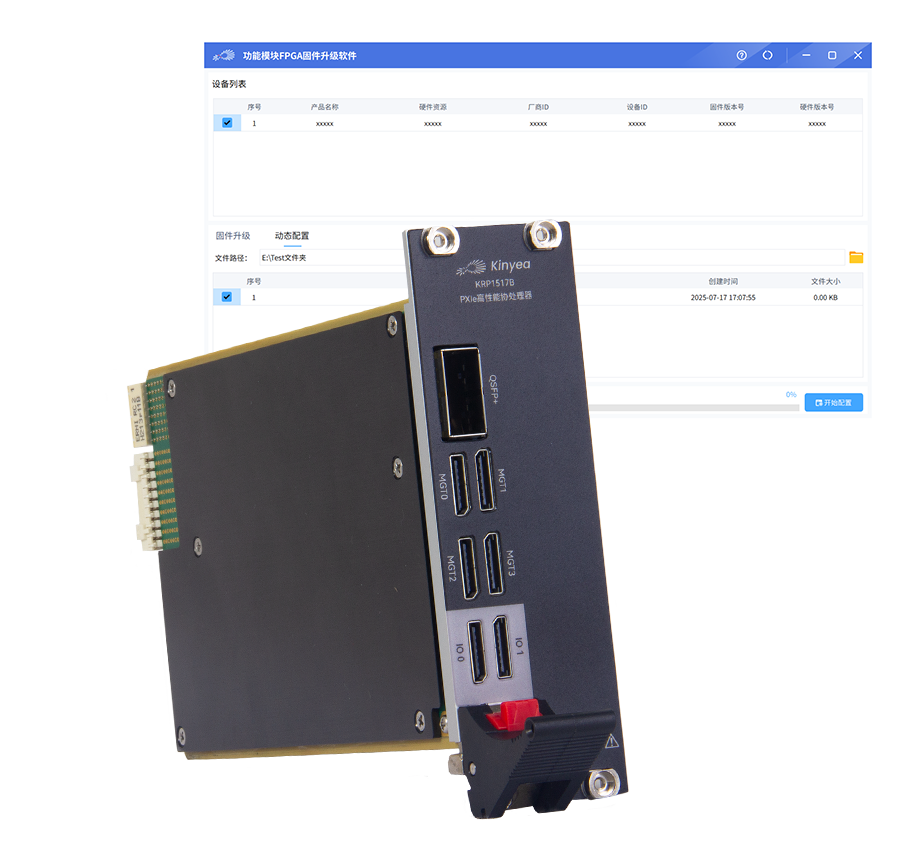

The module supports on-the-fly FPGA reconfiguration. It includes dedicated dynamic configuration software, enabling you to rapidly deploy different application functions onto the onboard FPGA (e.g., Xilinx Ultrascale+) for real-time data processing and custom algorithm execution.

Excellent P2P performance empowers you to define your own application system

With P2P streaming capabilities over 6.4 GB/s, this module can be paired with the KVE4100 series WSA and KVG5100 series WSG to enhance the system's ability to run complex algorithms.

Model parameters

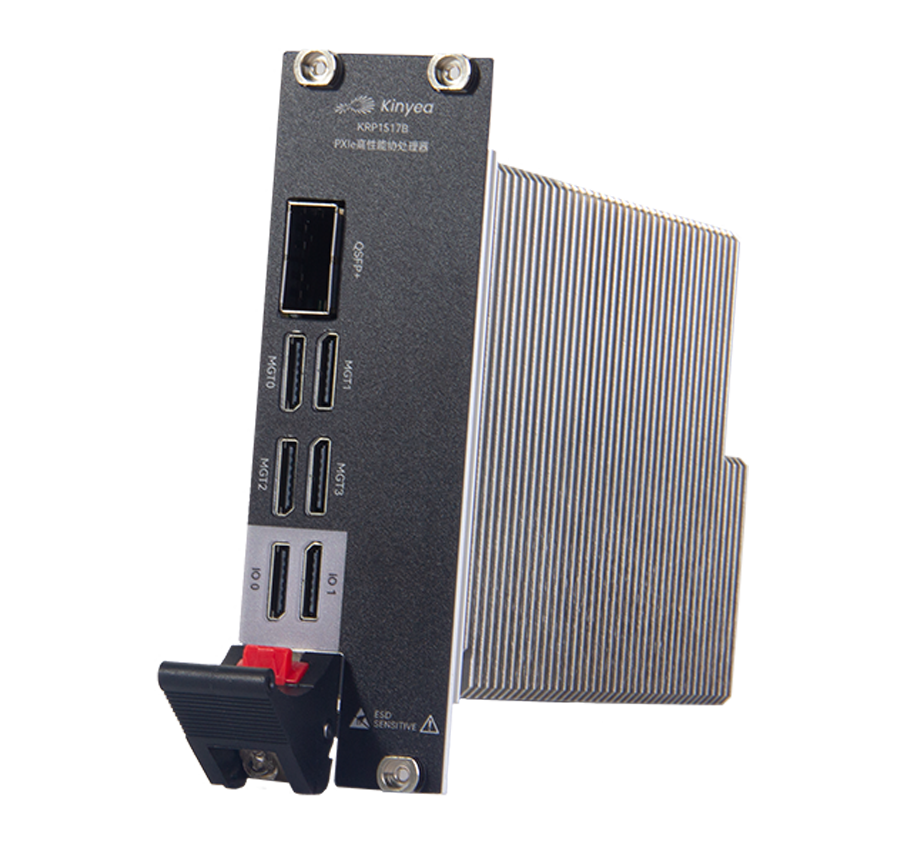

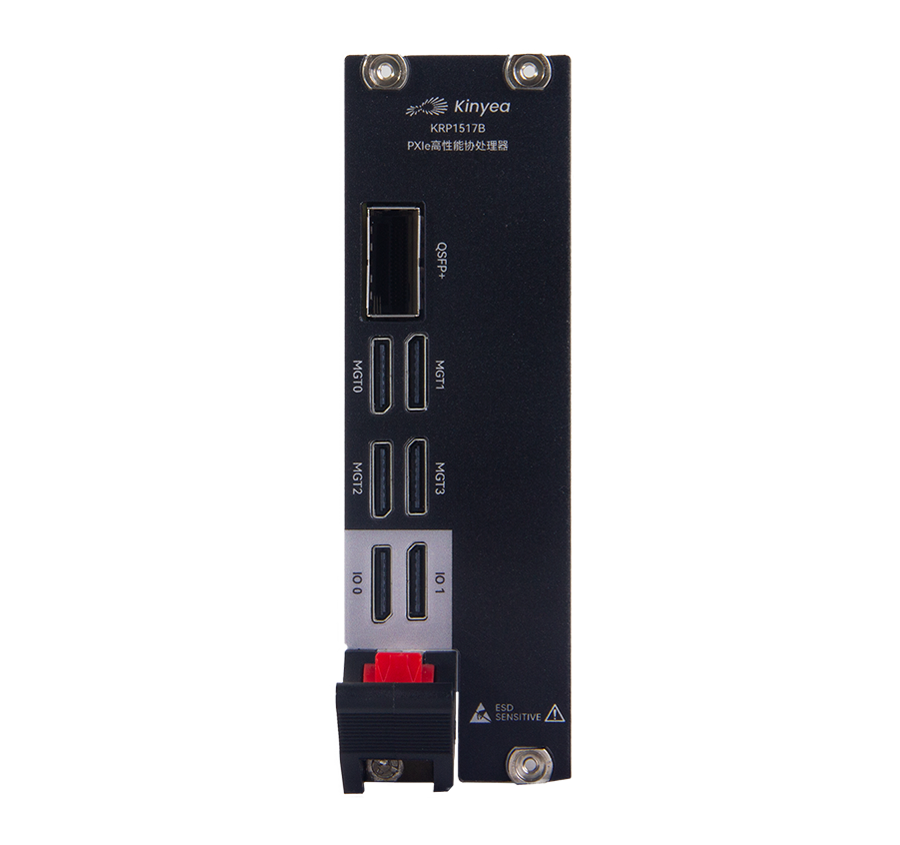

KRP1517B

FPGA Resource

XCKU115

Ports

4×MGT 1×QSFP+ 2×DIO

Onboard DRAM

8GB

Size

3U/ 2 slots

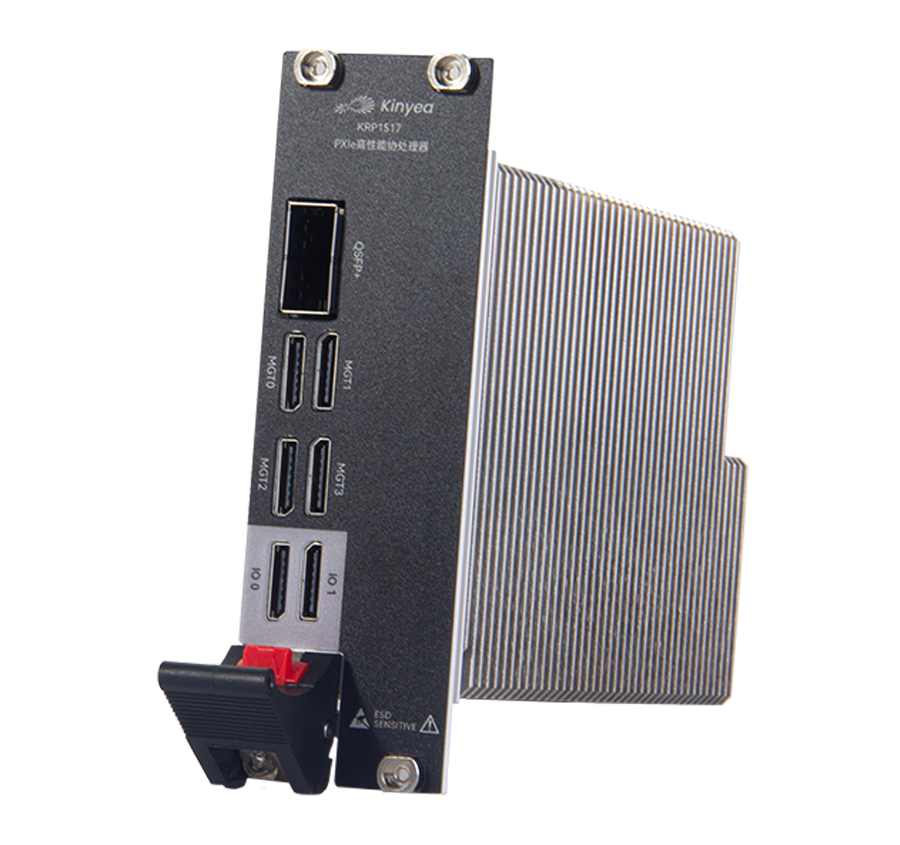

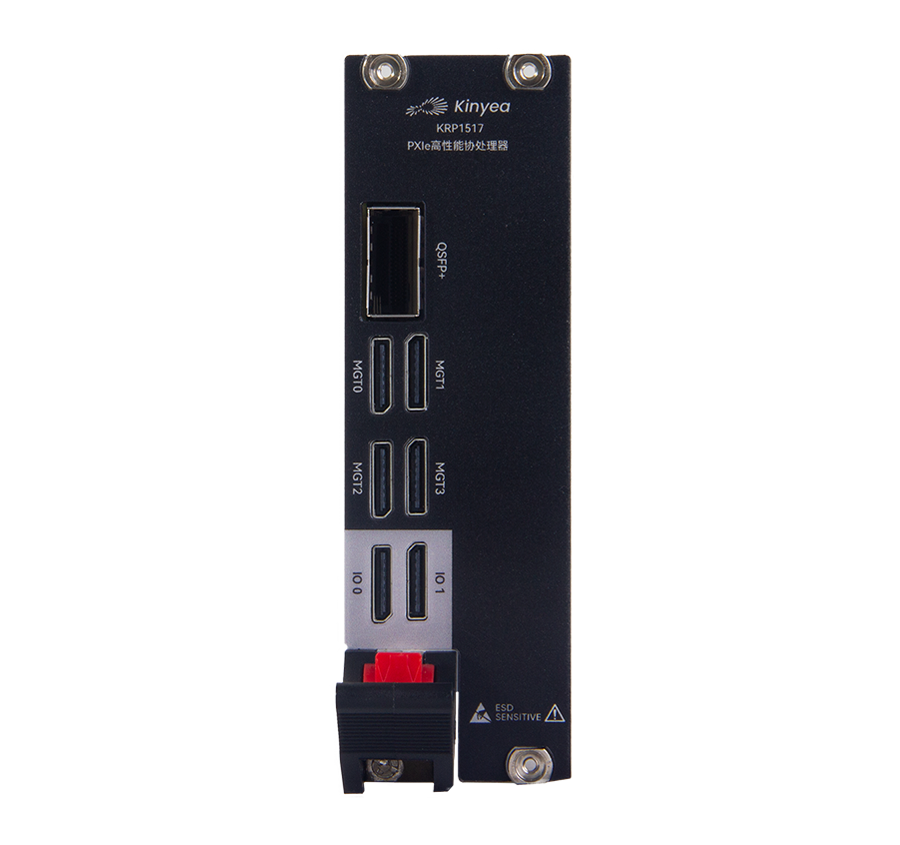

KRP1517

FPGA Resource

XCKU115

Ports

2×MGT 1×QSFP+ 1×DIO

Onboard DRAM

8GB

Size

3U/ 2 slots

Ordering information

KRP1517

PXIe High Performance Coprocessor
3U/ 2 slots
FPGA：XCKU115

KRP1517B

PXIe High Performance Coprocessor
3U/ 2 slots
FPGA：XCKU115

[kyR]Multi-channel selection kySP

kyR-KC8, kyR-KC16, kyR-KC32, kyR-KC64, kyR-KC128, kyR-CS-SSD

[kyT]Multi-channel Concurrent kySP

kyT-KC8, kyT-KC16, kyT-KC32, kyT-KC64, kyT-KC128, kyT-CS-SSD

[kyR]Real-time signal demodulation kySP

kyR-AMD-RT, kyR-GVSA-RT, kyR-ASK-RT, kyR-PSK-RT, kyR-FSK-RT, kyR-QAM-RT, kyR-OFDM-RT

[kyT]Real-time signal generation kySP

kyT-AMD-RT, kyT-GVSG-RT, kyT-ASK-RT, kyT-PSK-RT, kyT-FSK-RT, kyT-QAM-RT, kyT-OFDM-RT
