Features

• Standard with multi-configuration signal-analysis software kyMCSG

  It not only features spectrum analysis, sweep frequency detection, power analysis, I/Q analysis, and temperature monitoring functions but also serves as a versatile and powerful host (kyMOS) for installing and running a wide variety of specialized kySP applications.

• Performing custom computations using raw signal IQ data

  The raw I/Q data can be obtained either through API driver functions or exported within kyMCSA. Additionally, the pre-installed test routines facilitate seamless custom development.

• Performing multi-domain processing with up to 1000MHz of instantaneous analysis bandwidth

  Bandwidth Options: 50MHz (Standard), 100MHz, 200MHz, 500MHz, and 1000MHz.

• Paired with KSD series products to effortlessly create high-capacity data recording systems

  Require kyR-MTS, achieve storage capacities of 8TB, 16TB, or 32TB, with options for even larger expandable capacity. This system supports continuous recording and storage for signals with a maximum bandwidth of 1000MHz.

• Enables the agile construction of multi-channel acquisition and analysis systems

  The comprehensive functionality of its trigger I/O and reference clock I/O facilitates the construction of physical multi-channel systems.
  Use the kyR-KC series of kySP to build a variable-bandwidth, multi-channel system within a single signal analyzer.

• Paired with various kySPs for quick application switching to enable more agile development of your application system

  Eg: analog signal demodulation SP, general digital demodulation kySP, phase noise analysis kySP, 5G NR signal analysis kySP, ADS-B signal analysis kySP, GPS signal analysis kySP, and signal recognition kySP, etc.

Model parameters

KVE4108A

Frequency range

100kHz~8GHz

Instantaneous BW

MAX.1GHz

Accuracy

1MHz~300MHz： ±0.7dB 300MHz~6GHz： ±1dB 6GHz~8GHz： ±1.2dB

Flatness

300MHz~6GHz： ≤±1dB 6GHz~8GHz： ≤±1.5dB

DANL

100kHz~8GHz： ≤-158dBm/Hz

Size

3U/2 slots

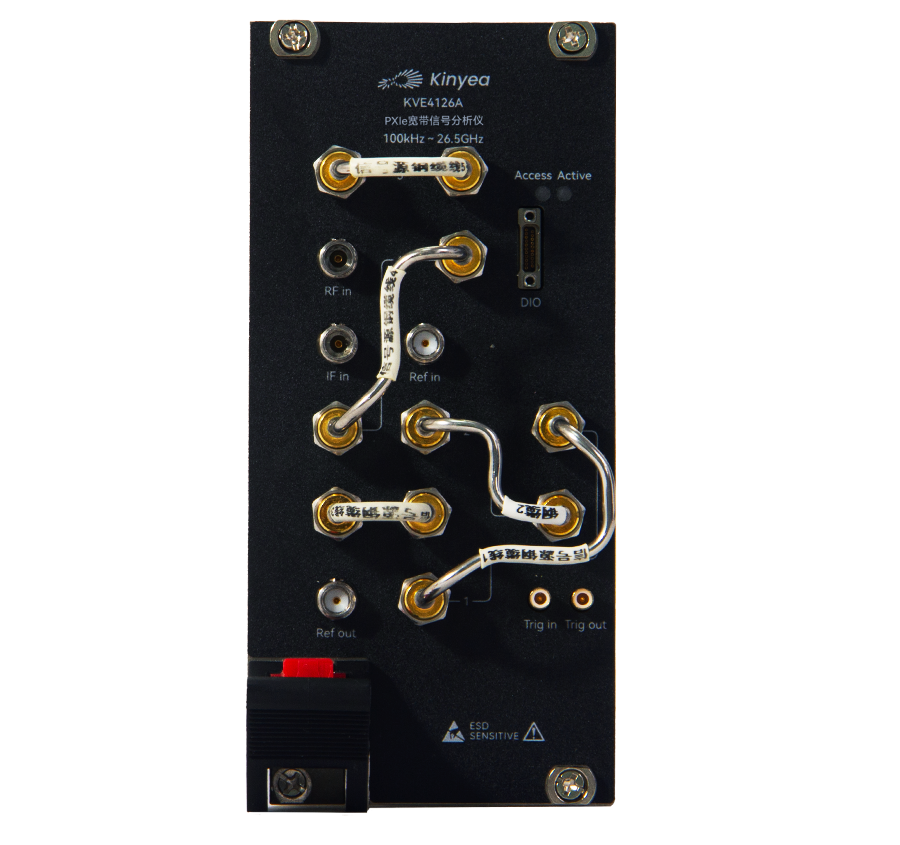

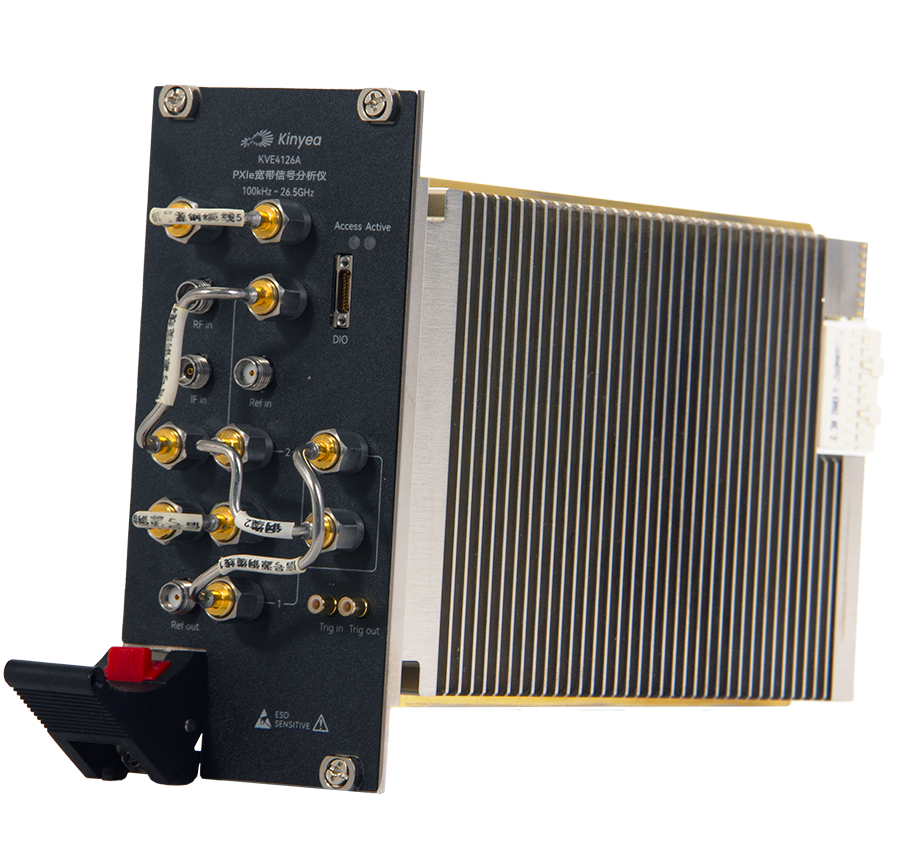

KVE4126A

Frequency range

100kHz~26.5GHz

Instantaneous BW

MAX.1GHz

Accuracy

1MHz~8GHz： Same as KVE4108A 8GHz~26.5GHz： ±1.5dB

Flatness

300MHz~6GHz： ≤±1dB 6GHz~26.5GHz： ≤±1.5dB

DANL

100kHz~8GHz： ≤-158dBm/Hz 8GHz~26.5GHz： ≤-160dBm/Hz

Size

3U/ 3 slots

KVE4143A

Frequency range

100kHz~43.5GHz

Instantaneous BW

Max.1GHz

Accuracy

1MHz~26.5GHz： Same as KVE4126A 26.5GHz~43.5GHz： ±1.8dB

Flatness

300MHz~26.5GHz： Same as KVE4126A 26.5GHz~43.5GHz： ≤±2dB

DANL

100kHz~8GHz： ≤-156dBm/Hz 8GHz~26.5GHz： ≤-157dBm/Hz 26.5GHz~43.5GHz： ≤-140dBm/Hz

Size

3U/ 4 slots

Ordering information

KVE4108A

PXIe Wideband Signal Analyzer
3U/ 2 slots
100kHz~8GHz
50MHz analysis BW

KVE4126A

PXIe Wideband Signal Analyzer
3U/ 3 slots
100kHz~26.5GHz
50MHz analysis BW

KVE4143A

PXIe Wideband Signal Analyzer
3U/ 4 slots
100kHz~43.5GHz
50MHz analysis BW

kyR-BW100

Bandwidth extension option
Extend analysis BW to 100MHz

kyR-BW200

Bandwidth extension option
Extend analysis BW to 200MHz

kyR-BW500

Bandwidth extension option
Extend analysis BW to 500MHz

kyR-BW1000

Bandwidth extension option
Extend analysis BW to 1000MHz

kyR-MTS

Large capacity data recording kySP  (Require KSD Series)

[kyR]Multi-channel selection kySP

kyR-KC8, kyR-KC16, kyR-KC32, kyR-KC64, kyR-KC128, kyR-CS-SSD（Require KRP1517）

[kyR]Signal Analysis & Processing kySP(1)

kyR-GVSA, kyR-AMD, kyR-PTM, kyR-PNA, kyR-NFA, kyR-OFDM, kyR-AMD-RT, kyR-GVSA-RT, kyR-ASK-RT, kyR-PSK-RT, kyR-FSK-RT, kyR-QAM-RT, kyR-OFDM-RT……

[kyR]Signal Analysis & Processing kySP(2)

kyR-NR, kyR-WLAN, kyR-BLE, kyR-ADSB, kyR-AIS, kyR-ACARS, kyR-GPS, kyR-BDS, kyR-LK11, kyR-SRC……
