MARSA Hardware-Kinyea Technologies

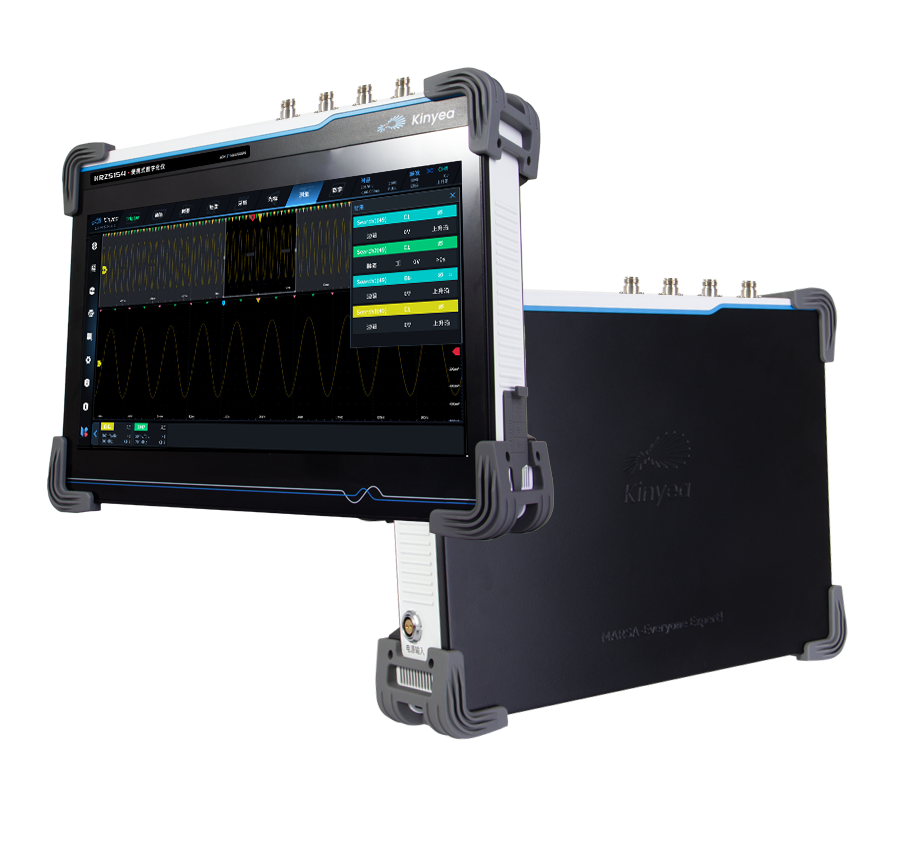

Up to 8 Channels, maximum 20 GSa/s Sample Rate Featuring a 14-inch touchscreen, with portable, all-in-one design, processing at speeds of up to 20 GSa/s. A comprehensive suite of API drivers enhances the instrument's suitability for custom development. Paired with kyR-xTS series of kySP, it can be configured as a high-capacity data recorder, making it especially suitable for field use.

Features

Superior performance, transforms into a high-capacity data streaming recorder with kyR-xTS

Featuring a 14-inch touchscreen, this instrument offers a storage capacity of up to 32 TB and supports the continuous recording and storage of signals with a bandwidth of up to 1200 MHz.

Leverage the full advantage of high-precision multi-channel synchronous acquisition

With channel-to-channel synchronization accuracy superior to 100 ps across all product models, helps you easily achieve your multi-channel, high-precision synchronous acquisition goals.

Model parameters

KRZ2152

Channels

Sampling rate

Single-CH: 2GSa/s Dual-CH: 1GSa/s

Resolution

12bit

Impedance

50Ω

Memory

Single-CH: MAX. 1Gpts

KRZ2154

Channels

Sampling rate

All-CH: 1GSa/s Half-CH: 2GSa/s

Resolution

12bit

Impedance

50Ω

Memory

Single-CH: MAX. 1Gpts

KRZ2156

Channels

Sampling rate

All-CH: 1GSa/s Half-CH: 2GSa/s

Resolution

12bit

Impedance

50Ω

Memory

Single-CH: MAX. 1Gpts

KRZ2158

Channels

Sampling rate

All-CH: 1GSa/s Half-CH: 2GSa/s

Resolution

12bit

Impedance

50Ω

Memory

Single CH: Max. 1Gpts

KRZ5152

Channels

Sampling rate

Single-CH: 5GSa/s Dual-CH: 2.5GSa/s

Resolution

14bit

Impedance

50Ω

Memory

Single CH: Max. 4Gpts

KRZ5154

Channels

Sampling rate

All-CH: 2.5GSa/s Half-CH: 5GSa/s

Resolution

14bit

Impedance

50Ω

Memory

Single CH: Max. 4Gpts

KRZ5156

Channels

Sampling rate

All-CH: 2.5GSa/s Half-CH: 5GSa/s

Resolution

14bit

Impedance

50Ω

Memory

Single CH: Max. 4Gpts

KRZ5158

Channels

Sampling rate

All-CH: 2.5GSa/s Half-CH: 5GSa/s

Resolution

14bit

Impedance

50Ω

Memory

Single CH: Max. 4Gpts

KRZ6121

Channels

Sampling rate

10GSa/s

Resolution

12bit

Impedance

50Ω

Memory

Max. 4Gpts

KRZ6124

Channels

Sampling rate

10GSa/s per CH

Resolution

12bit

Impedance

50Ω

Memory

Single CH: Max. 4Gpts

KRZ6122

Channels

Sampling rate

10GSa/s per CH

Resolution

12bit

Impedance

50Ω

Memory

Single-CH: Max. 4Gpts

KRZ7241

Channels

Sampling rate

20GSa/s

Resolution

12bit

Impedance

50Ω

Memory

Single-CH: Max. 4Gpts

KRZ7242

Channels

Sampling rate

20GSa/s per CH

Resolution

12bit

Impedance

50Ω

Memory

Single-CH: Max. 4Gpts

Ordering information

KRZ2152

Portable High Speed  Digitizer
2CH, 2GSa/s

KRZ2154

Portable High Speed Digitizer
4CH, 2GSa/s

KRZ2156

Portable High Speed Digitizer
6CH, 2GSa/s

KRZ2158

Portable High Speed Digitizer
8CH, 2GSa/s

KRZ5152

Portable High Speed Digitizer
2CH, 5GSa/s

KRZ5154

Portable High Speed Digitizer
4CH, 5GSa/s

KRZ5156

Portable High Speed Digitizer
6CH, 5GSa/s

KRZ5158

Portable High Speed Digitizer
8CH, 5GSa/s

KRZ6121

Portable High Speed Digitizer
1CH, 10GSa/s

KRZ6122

Portable High Speed Digitizer
2CH, 10GSa/s

KRZ6124

Portable High Speed Digitizer
4CH, 10GSa/s

KRZ7241

Portable High Speed Digitizer
1CH, 20GSa/s

KRZ7242

Portable High Speed Digitizer
2CH, 20GSa/s

KDZ-SL1G

Memory depth extension option
Extends the maximum single-channel memory depth to 1Gpts.

KDZ-SL2G

Memory depth extension option
Extends the maximum single-channel memory depth to 1Gpts.
Not compatible with KDZ2152, KBZ2000 Series, KRZ2000Series, KCZ2000 Series, KSO2152, KBO2000 Series, KRO2000 Series, KCO2000 Series.

KDZ-SL4G

Memory depth extension option
Extends the maximum single-channel memory depth to 4Gpts.
Not compatible with KDZ2152, KBZ2000 Series, KRZ2000Series, KCZ2000 Series, KSO2152, KBO2000 Series, KRO2000 Series, KCO2000 Series.

[kyR]Large capacity recording kySP

kyR-8TS, kyR-16TS, kyR-32TS

[kyR]Multi-channel selection kySP

kyR-KC8, kyR-KC16, kyR-KC32, kyR-KC64, kyR-KC128, kyR-CS-SSD
